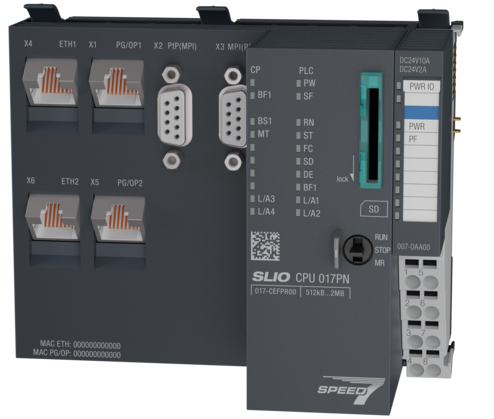

CPU 017PN - 017-CEFPR00

• Zasilanie
• 24 V

• Input Voltage
• x Nie

• Current Consumption
• 1.1 A

• Max. current drain at backplane bus
• 3 A

• Max. current drain load supply
• 10 A

• Current consumption from backplane bus
• x Nie

• Current consumption from load voltage L+ (without load)
• x Nie

• Power Loss
• 7.5 W

• Number of inputs (digital)
• x Nie

• Rated load voltage (digital)
• x Nie

• Current consumption from load voltage L+ (without load)
• x Nie

• Signal logic input (digital)
• x Nie

• Input characteristic curve (digital)
• x Nie

• Initial data size (digital)
• x Nie

• Number of outputs (digital)
• x Nie

• Rated load voltage (digital output)
• x Nie

• Current consumption from load voltage L+ (without load)
• x Nie

• Signal logic output (digital)
• x Nie

• Output data size (digital)
• x Nie

• Number of inputs (analog)
• x Nie

• Rated load voltage (analog)
• x Nie

• Current consumption from load voltage L+ (without load)
• x Nie

• Voltage inputs (analog)
• x Nie

• Current inputs (analog)
• x Nie

• Resolution in bit
• x Nie

• Measurement principle
• x Nie

• Basic conversion time
• x Nie

• Initial data size
• x Nie

• Number of outputs (analog)
• x Nie

• Output voltage ranges
• x Nie

• Output current ranges
• x Nie

• Resolution in bit (analog)
• x Nie

• Conversion time (analog)
• x Nie

• Output data size (analog)
• x Nie

• Number of counters
• x Nie

• Counter width
• x Nie

• Maximum input frequency
• x Nie

• Maximum count frequency
• x Nie

• Maximum count frequency
• x Nie

• Maximum count frequency
• x Nie

• Maximum count frequency
• x Nie

• Number of channels
• x Nie

• Input voltage (rated value)
• x Nie

• Power stage
• x Nie

• PWM frequency
• x Nie

• Type of encoder
• x Nie

• Encoder frequency
• x Nie

• Encoder resolution (internal)
• x Nie

• Control type
• x Nie

• Terminal voltage max.
• x Nie

• Terminal current max.
• x Nie

• Total current per module, max.
• x Nie

• Number of clamps
• x Nie

• Binding of potential
• x Nie

• Point-to-point protocol
• ASCII protocol, STX/ETX protocol, 3964(R) protocol, USS master protocol, Modbus master protocol, Modbus slave protocol

• Encoder Supply: Number of outputs (L+n)
• x Nie

• Rated output current
• x Nie

• Port mode
• x Nie

• Load memory, integrated
• 2000 kB

• Work memory, integrated
• 512 kB

• Work memory, maximal
• 2000 kB

• Memory card slot
• SD/MMC-Card with max. 2 GB

• Racks, max.
• 5

• Modules per rack, max.
• 64 minus number line extensions

• Fieldbus
• x Nie

• Connector
• x Nie

• Topology
• x Nie

• Transmission speed, max.
• x Nie

• Address range inputs, max.
• x Nie

• Address range outputs, max.
• x Nie

• Material
• PPE / PPE GF10

• Montaż
• Profile rail 35 mm

• Width
• 131.5 mm

• Height
• 109 mm

• Depth
• 83 mm

• Net weight
• 335 g

• Gross weight
• 365 g

• Certifications
• UL certification, ChinaRoHS certification

• Safety protocol
• x Nie

• Safety requirements
• x Nie

• Circuit monitoring
• x Nie

• Max. operating temperature
• 60 °C
