SLIO
FM - Moduły funkcyjne
Inteligentny system sterowania i zdalnych wejść/wyjść

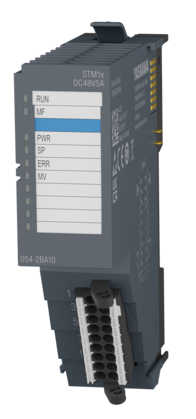

Opis produktu
Function modules (FM) are intelligent modules that perform technological tasks such as position determination, counting and positioning, and other complex functions in the automation independently. They are used when there are high demands on accuracy and dynamic in the starting of automation tasks.
Different functional modules, for example counter modules, SSI modules provide exactly the functions that are required for the respective tasks.
Each functional module consists of a terminal and an electronic module.
The terminal module (TM) contains the retainer for the electronic module (EM), the backplane connectors and contacts for the distribution of the load power supply electronics, the modular connection to DC 24 V load power supply and the staircase-shaped terminal block for the wiring.
Furthermore the terminal module processes a locking system for fixing to a profile rail. The SLIO system can also be constructed "block by block" outside the cabinet and later assembled as a complete system in the control cabinet.
The functionality of the signal module is defined via the electronic module that is connected by a secure sliding mechanism to the terminal module.
During service the defective electronic module can be replaced without detaching the wiring.
Characteristics
- Supports fast counter systems up to 1 MHz
- Counting direction invertible
- Integrated digital outputs
- For direct connection of incremental encoders
- Electrically isolated to the backplane bus
- Direct mapping and readability of the channel conditions via status LEDs
- Safe and time-saving installation by the terminal assignment mounted on the module
- When changing the module equipment identification (BMK) is retained on the TM
- Individual single-channel lettering on insertion strip
- 24 month warranty
Dane techniczne
- Current consumption from backplane bus
- 100 mA
- Power Loss
- 2 W
- Number of inputs (digital)
- 3
- Rated load voltage (digital)
- DC 20.4 - 28.8 V
- Current consumption from load voltage L+ (without load)
- 20 mA
- Signal logic input (digital)
- x Nie
- Input characteristic curve (digital)
- IEC 61131-2, type 3
- Initial data size (digital)
- 3 bit
- Number of outputs (digital)
- 1
- Rated load voltage (digital output)
- DC 20.4 - 28.8 V
- Current consumption from load voltage L+ (without load)
- 20 mA
- Signal logic output (digital)
- x Nie
- Number of inputs (analog)
- x Nie
- Rated load voltage (analog)
- x Nie
- Voltage inputs (analog)
- x Nie
- Current inputs (analog)
- x Nie
- Measurement principle
- x Nie
- Number of outputs (analog)
- x Nie
- Output voltage ranges
- x Nie
- Output current ranges
- x Nie
- Number of counters
- x Nie
- Number of channels
- 1
- Input voltage (rated value)
- 48 V
- Power stage
- 2x Full bridge PWM
- PWM frequency
- 32 kHz
- Type of encoder
- A/B/Z-track 5V differential
- Encoder frequency
- 50 kHz
- Control type
- closed loop, open loop
- Number of clamps
- x Nie
- Binding of potential
- x Nie
- Point-to-point protocol
- x Nie
- Encoder Supply: Number of outputs (L+n)
- x Nie
- Port mode
- x Nie
- Memory card slot
- x Nie
- Racks, max.
- x Nie
- Modules per rack, max.
- x Nie
- Fieldbus
- x Nie
- Connector
- x Nie
- Topology
- x Nie
- Material
- PPE / PPE GF10
- Montaż
- Profile rail 35 mm
- Width
- 25.8 mm
- Height
- 109 mm
- Depth
- 76.5 mm
- Net weight
- 70 g
- Gross weight
- 95 g
- Certifications
- UL certification, KC certification, UKCA certification, ChinaRoHS certification
- Safety protocol
- x Nie
- Safety requirements
- x Nie
- Circuit monitoring
- x Nie
- Max. operating temperature
- 60 °C
